Z519

Z519 - TOUGH ON THE COMPETITION

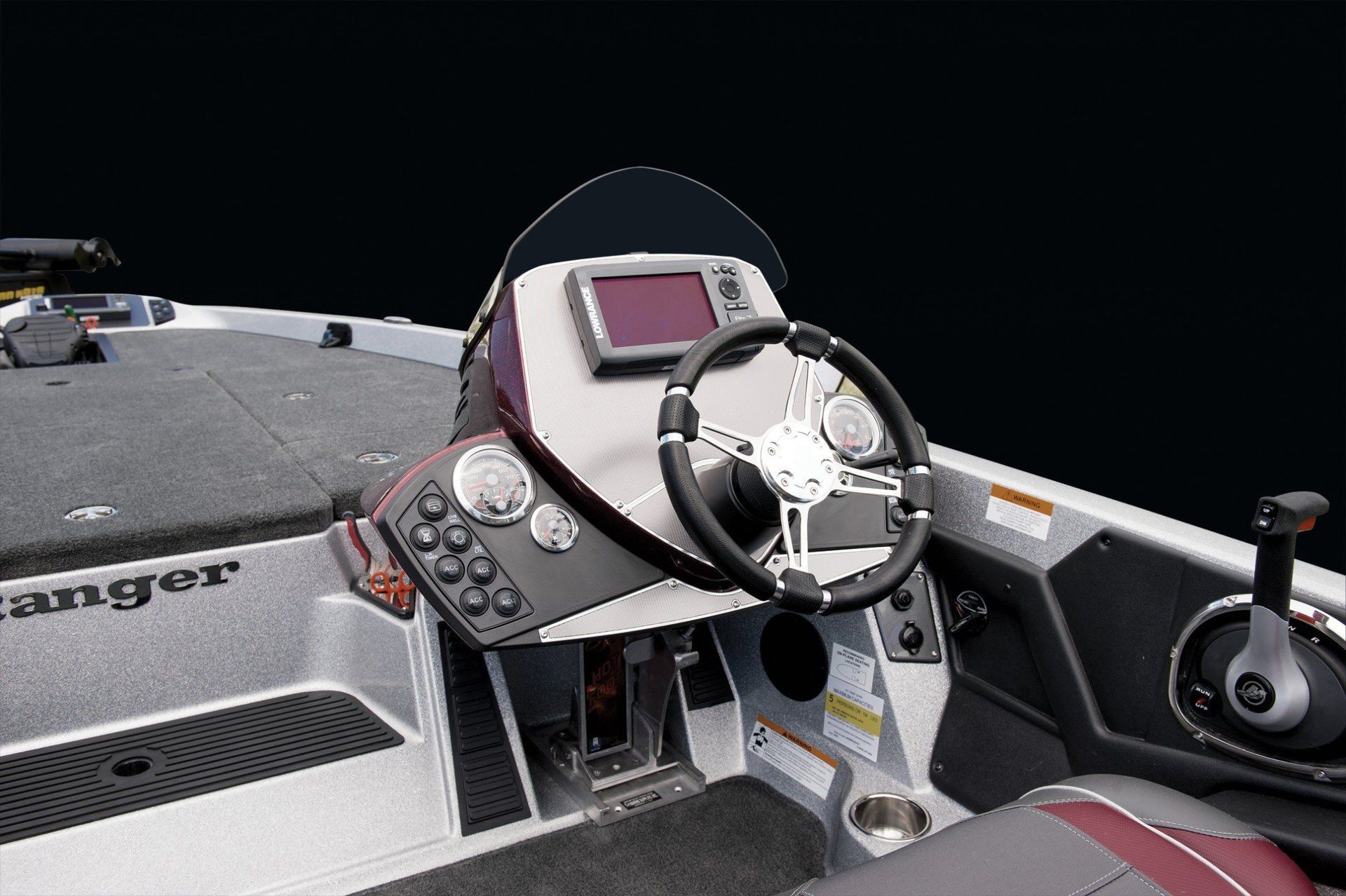

Hand-crafted for tournament-level performance, the Z519 is built to take all comers. Measuring 19' 6" in length, the Z519 is rated for up to 225 horses. Upfront, the port and center boxes accommodate rods up to 8' in length, while the starboard side houses a large storage box and gel-coat lined, insulated cooler. The Z519 cockpit features high performance bucket seats and an offset console that included a flush-mounted Lowrance® depthfinder, weather-resistant membrane-style switches and a host of gauges and instrumentation. The rear deck includes a divided, aerated livewell, two insulated storage boxes, and easy access to batteries and pumps. Additional features include integrated L.E.D. navigation lights, an auto-bilge, measuring board, and multiple tool holders. Experience the premium performance and ultra-solid fishability of the Z519. From its smooth handling and accelerated engineering, this fishin' machine is easy on the budget and Built To Be Yours®.
SPECIFICATIONS

Total Persons (persons): 5
Rod Box Length - Port: 8'0"
Rod Box Length - Center: 8'0"
Trailer GVWR (lbs.): 4500
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 24'7"
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 22'7"
Width On Trailer: 102"
Hull Length: 19'6"
Beam: 95"
Overall Beam w/ Rubrail: 96.5"
Maximum Horsepower (HP): 225
Engine Shaft Length: 20"
Inside Depth: 20"
Fuel Capacity (gal.): 37
Livewell Capacity (gal.): 26
Total Person, Motor, Gear (lbs.): 1500
Approximate Boat Weight (lbs.): 1625
