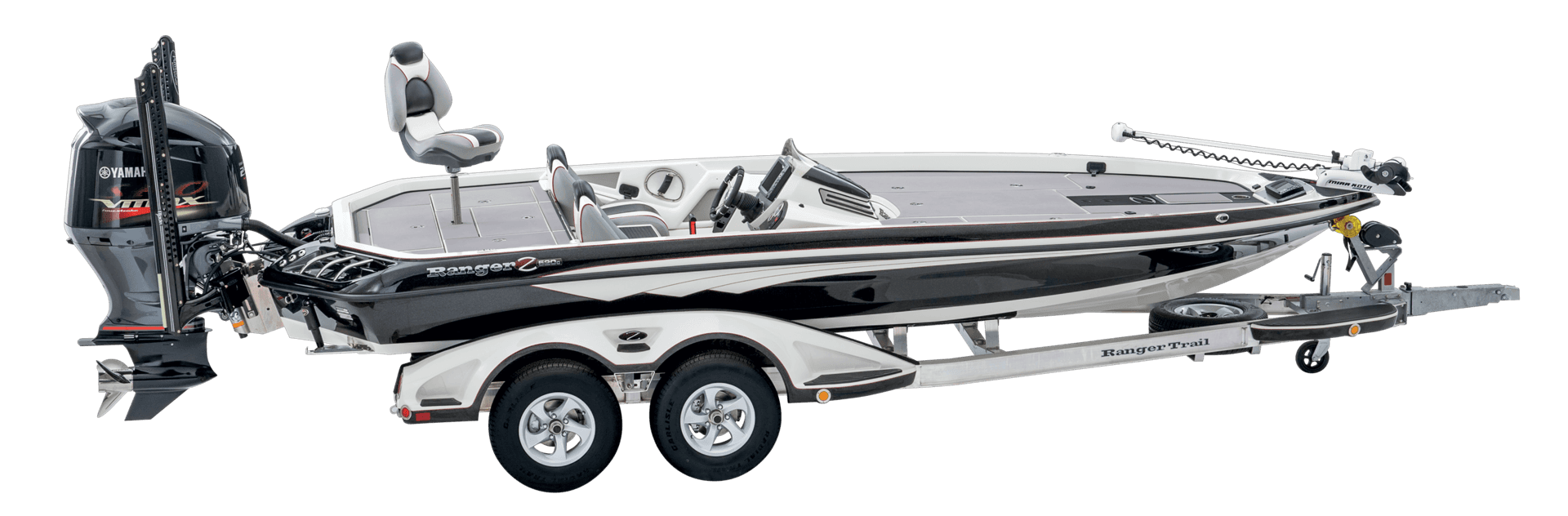

Z520C Intracoastal
Z520C Intracoastal - THIS RIG GETS 'EM ALL

From the intense demands of competition to the crossover freedom of one all-out, ultra-versatile model for both salt and freshwater fishing, the Z520c Intracoastal is engineered to take advantage of a world of excitement on the water. Built on the tournament-proven performance and extreme popularity of the legendary Z520c, this style-conscious Intracoastal design is built to slip in and out of skinny water with ease. Punctuated with strong top end performance, responsive handling, and a smooth, dry ride, it's opening up a world of opportunity and even more reasons to hit the water - wherever you are.
SPECIFICATIONS

Approximate Boat Weight (lbs.): 1825
Total Persons (persons): 5
Rod Box Length - Port 1: 8'6"
Rod Box Length - Port 2: 8'0"
Rod Box Length - Center: 8'0"
Rod Box Length - Starboard: 6'0"
Trailer GVWR (lbs.): 5000
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 26'7"
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 24'7"
Hull Length: 20'9"
Beam: 95"
Overall Beam w/ Rubrail: 96.5"
Maximum Horsepower (HP): 250
Engine Shaft Length: 20"
Inside Depth: 22"
Draft (Engine, Bait, Fuel, Accessories): 13"
Fuel Capacity (gal.): 45
Livewell Capacity (gal.): 26
Width On Trailer: 102"
Total Person, Motor, Gear (lbs.): 1650
Height On Trailer (Add Approx 3' for T-Top): 6'0"
